0821000003

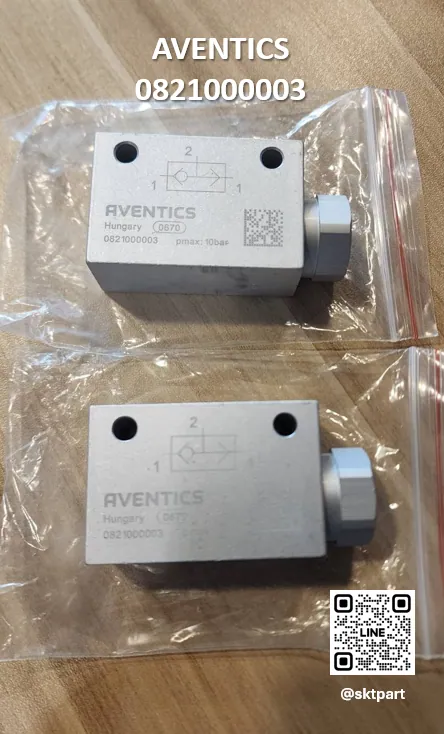

AVENTICS 0821000003

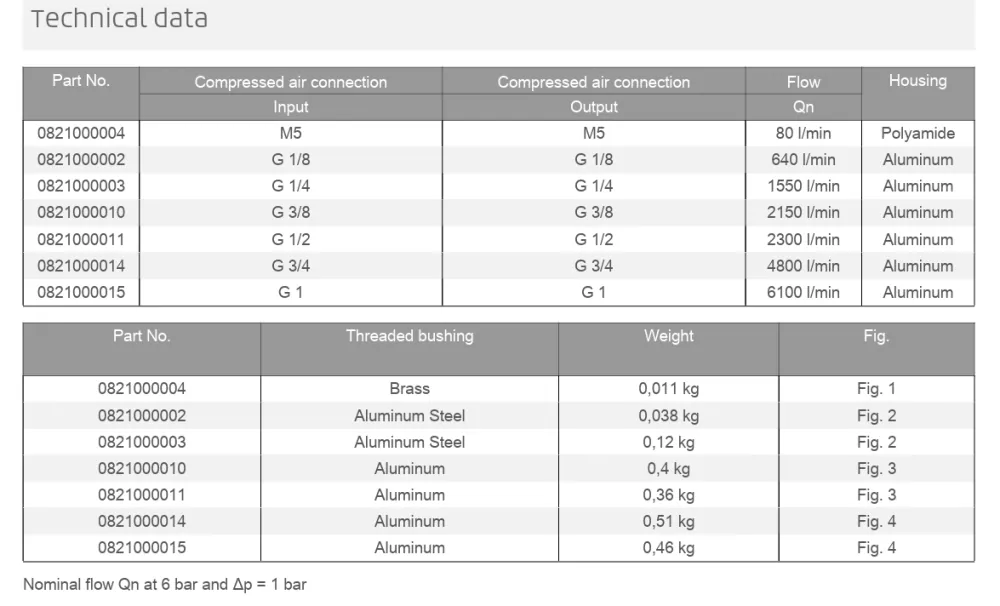

Specifications
Sealing principleSoft Seal
TypePoppet valve
MediumCompressed air
Max. particle size5 µm
Min. ambient temperature0 °C
Max. ambient temperature80 °C
Min. medium temperature0 °C
Max. medium temperature80 °C
Oil content of compressed air min.0 mg/m³
Oil content of compressed air max.1 mg/m³

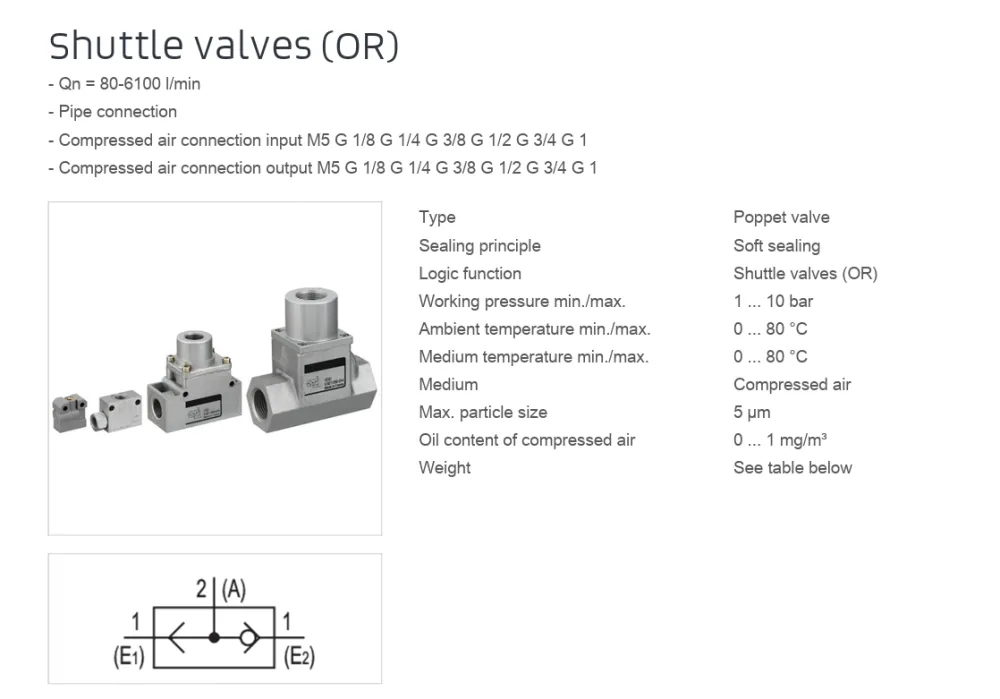

Logic functionShuttle valves (OR)
Connection typePipe connection
Compressed air connection inputG 1/4
Compressed air connection outputG 1/4
Nominal flow Qn1550 l/min
Working pressure min.1 bar
Working pressure max10 bar
Weight0.12 kg
Housing materialAluminum
Seal materialAcrylonitrile butadiene rubber
Material threaded bushingAluminum, Steel
